244-00G

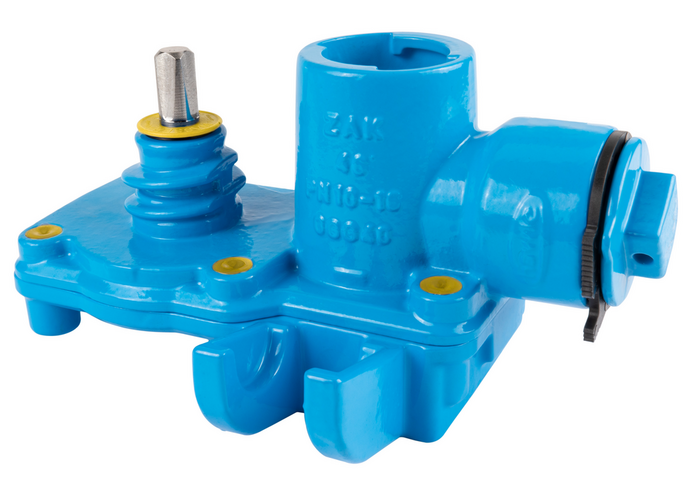

Universal Hawlinger with horizontal ZAK® socket in pipe direction

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310 or model no. 314-01) of the appropriate nominal width.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: NBR for gas
Max. operating Pressure: Gas: 5 bar
Medium Gas

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310 or model no. 314-01) of the appropriate nominal width.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

Contacts
Wish List
Order Nr.

Upper outlet
L

B
H
Borehole max.
 Medium Weight Specification Basket
2440320005
 ZAK 34 172 mm 200 mm 120 mm 24 mm 4,70 kg
2440500005
 ZAK 46 225 mm 200 mm 130 mm 36 mm 6,10 kg
