242-00

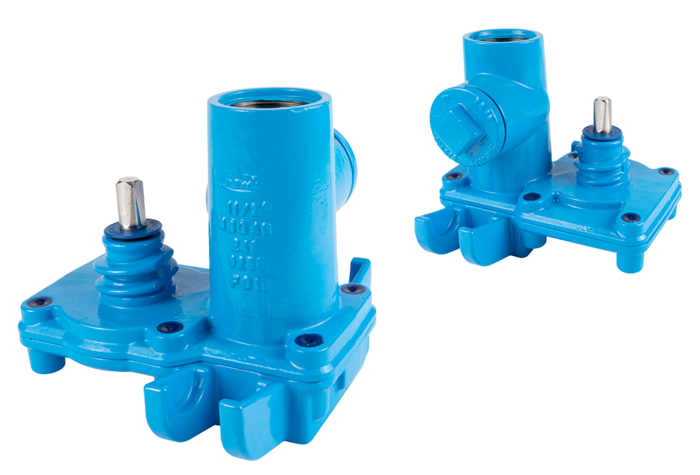

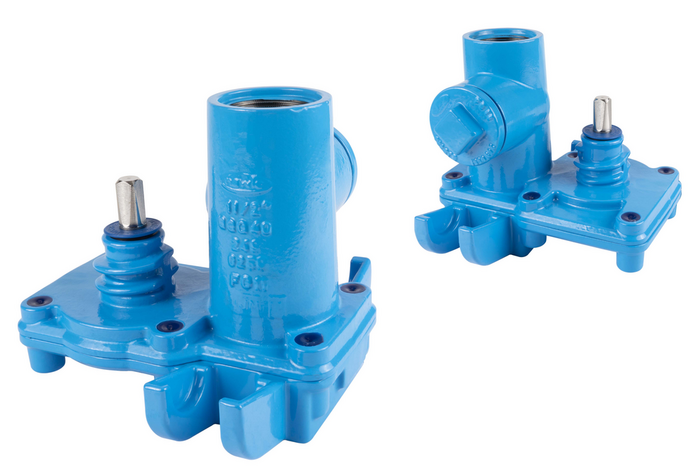

Universal Hawlinger with horizontal female thread outlet 90° to pipe direction

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03) of the appropriate nominal width.

In combination with fittings, the upper female thread outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03) of the appropriate nominal width.

In combination with fittings, the upper female thread outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.

Description
L

L1
B
H1
Borehole max.
Outlet O
 Medium Weight Specification Basket
2400000009
 drainage fuction on request             0,00 kg
2420320000
   165 mm 68 mm 200 mm 160 mm 24 mm IG 1" 6,30 kg
2420400000
   165 mm 68 mm 200 mm 160 mm 24 mm IG 1 1/4" 6,30 kg
2420500000
   195 mm 82 mm 200 mm 165 mm 36 mm IG 1 1/2" 6,90 kg
8700000000
 Surcharge for spindle bore             0,00 kg
Wish List

Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
