239-02G

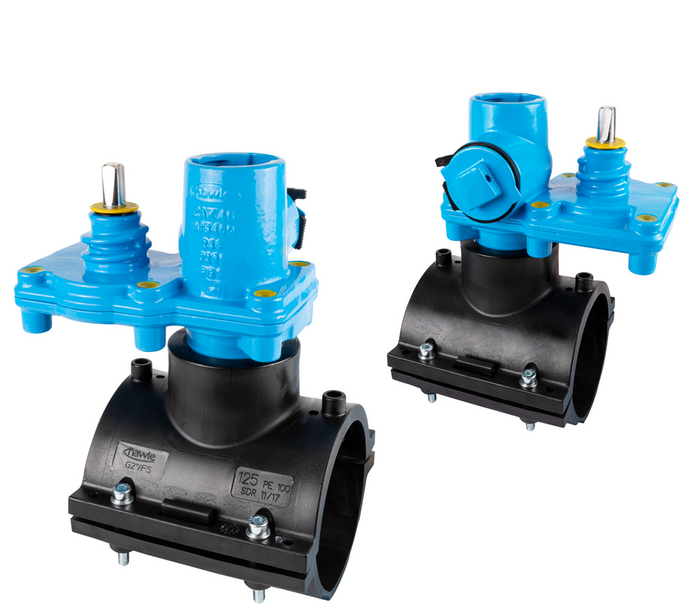

Hawlinger for gas with upper horizontal ZAK® socket 90° to pipe direction and lower electrofusion saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas Electrofusion saddle HA-WELD: PE 100 |
|---|---|
| Max. operating Pressure: | Gas: 10 bar |
| Medium | Gas |
Hawlingers with HA-WELD® electrofusion saddles are to be used for welding onto PE pipes acc. to DIN EN 1555 PE 80/100.
In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
In combination with a tapping device suitable for gas, the shut-off system enables the simple tapping of a pipeline, even in the operating state.
Square of spindle: 12,3 mm
|
Order Nr.
|
L |
Description |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2390905025
|
229 mm | 145 mm | 90 mm | 273 mm | 36 mm | ZAK 46 | 6,90 kg | ||||
|
2391105025
|
230 mm | 180 mm | 110 mm | 295 mm | 36 mm | ZAK 46 | 7,10 kg | ||||
|
2391255025
|
230 mm | 180 mm | 125 mm | 306 mm | 36 mm | ZAK 46 | 7,20 kg | ||||
|
2391603225
|
202 mm | 220 mm | 160 mm | 345 mm | 24 mm | ZAK 34 | 0,00 kg | ||||
|
2391605025
|
230 mm | 220 mm | 160 mm | 341 mm | 36 mm | ZAK 46 | 8,10 kg | ||||
|
2391805025
|
230 mm | 245 mm | 180 mm | 361 mm | 36 mm | ZAK 46 | 8,30 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
