239-00G

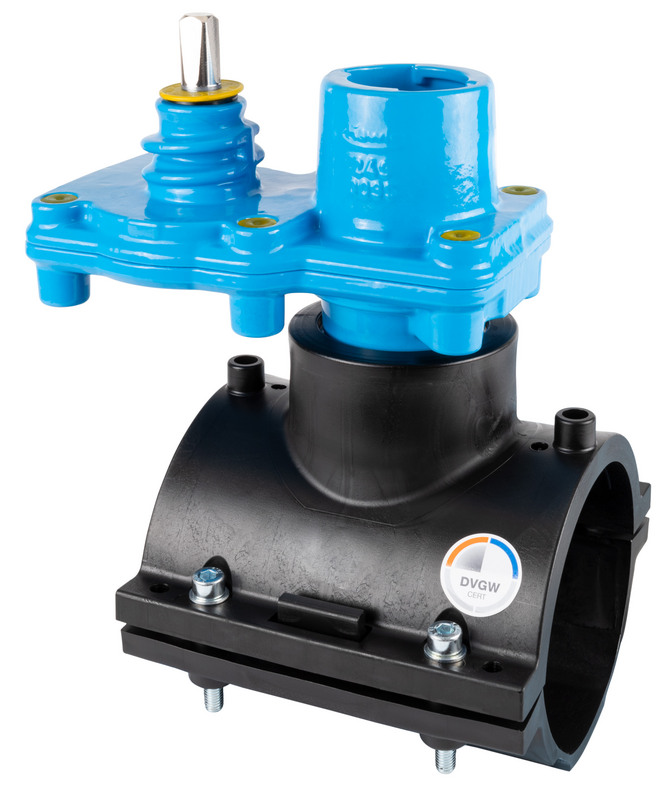

Hawlinger with upper vertical ZAK® socket and lower electrofusion saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas Electrofusion saddle HA-WELD: PE 100 |
|---|---|
| Max. operating Pressure: | Gas: 10 bar |
| Medium | Gas |
Hawlingers with HA-WELD® electrofusion saddle are to be used for welding onto PE pipes.
In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet is used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
|
Order Nr.
|
L |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2390905005
|
229 mm | 145 mm | 90 mm | 273 mm | 36 mm | ZAK 46 | 7,30 kg | |||
|
2390905007
|
239 mm | 145 mm | 90 mm | 273 mm | 36 mm | ZAK 46 | 5,80 kg | |||
|
2391105005
|
230 mm | 180 mm | 110 mm | 293 mm | 36 mm | ZAK 46 | 5,90 kg | |||
|
2391105007
|
230 mm | 180 mm | 110 mm | 293 mm | 36 mm | ZAK 46 | 5,90 kg | |||
|
2391255005
|
230 mm | 180 mm | 125 mm | 307 mm | 36 mm | ZAK 46 | 7,60 kg | |||
|
2391605005
|
229 mm | 220 mm | 160 mm | 341 mm | 36 mm | ZAK 46 | 7,90 kg | |||
|
2391605007
|
229 mm | 220 mm | 160 mm | 341 mm | 36 mm | ZAK 46 | 6,20 kg | |||
|
2391805005
|
230 mm | 245 mm | 180 mm | 360 mm | 36 mm | ZAK 46 | 8,10 kg | |||
|
2392255005
|
230 mm | 295 mm | 225 mm | 408 mm | 36 mm | ZAK 46 | 8,40 kg |
