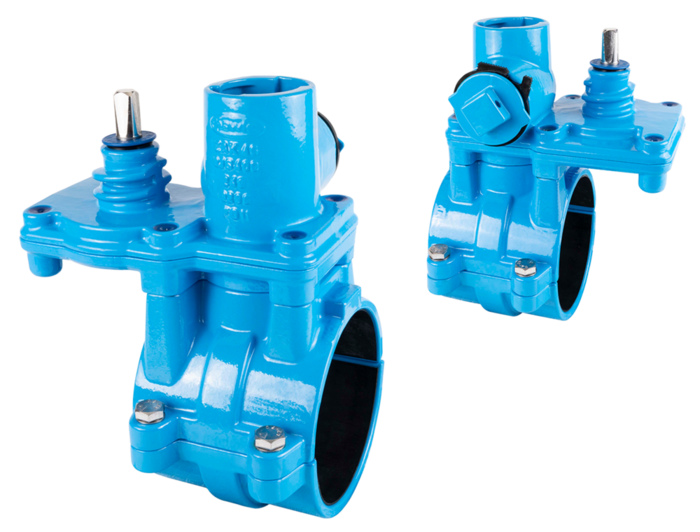

HAKU Hawlinger with horizontal ZAK® socket 90° to pipe direction

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2380633200
 1) 175 mm   155 mm 63 mm 201 mm 24 mm ZAK 34 6,80 kg
2380633203
 2) 165 mm   125 mm 63 mm 226 mm 24 mm ZAK 34 6,20 kg
2380635003
 2) 195 mm   125 mm 63 mm 233 mm 36 mm ZAK 46 7,81 kg
2380755003
 2) 200 mm   142 mm 75 mm 249 mm 36 mm ZAK 46 8,00 kg
2380903200
   175 mm   155 mm 90 mm 228 mm 24 mm ZAK 34 7,20 kg
2380905000
   205 mm   155 mm 90 mm 234 mm 36 mm ZAK 46 9,20 kg
2381103200
   175 mm   170 mm 110 mm 249 mm 24 mm ZAK 34 7,70 kg
2381105000
   205 mm   170 mm 110 mm 258 mm 36 mm ZAK 46 9,00 kg
2381253200
   175 mm   190 mm 125 mm 266 mm 24 mm ZAK 34 7,90 kg
2381255000
   205 mm   190 mm 125 mm 277 mm 36 mm ZAK 46 9,90 kg
2381403200
   175 mm   205 mm 140 mm 283 mm 24 mm ZAK 34 8,50 kg
2381405000
   205 mm   205 mm 140 mm 289 mm 36 mm ZAK 46 9,40 kg
2381603200
   175 mm   230 mm 160 mm 301 mm 24 mm ZAK 34 9,30 kg
2381605000
   205 mm   230 mm 160 mm 311 mm 36 mm ZAK 46 11,70 kg
2381805000
   205 mm   250 mm 180 mm 330 mm 36 mm ZAK 46 11,00 kg
2382253200
   175 mm   305 mm 225 mm 372 mm 24 mm ZAK 34 11,60 kg
2382255000
   205 mm   250 mm 225 mm 330 mm 36 mm ZAK 46 14,30 kg
2382505003
 2) 235 mm   377 mm 250 mm 455 mm 36 mm ZAK 46 18,30 kg
2382805003
 2) 235 mm   377 mm 280 mm 455 mm 36 mm ZAK 46 18,25 kg
2383155003
 2) 235 mm   408 mm 315 mm 500 mm 36 mm ZAK 46 19,80 kg
2400000009
     drainage fuction on request           0,00 kg
8700000000
     Surcharge for spindle bore           0,00 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.
2)
Factory assembled under pressure drilling valve, HAKU drilling saddle and screw-in Hawlinger
