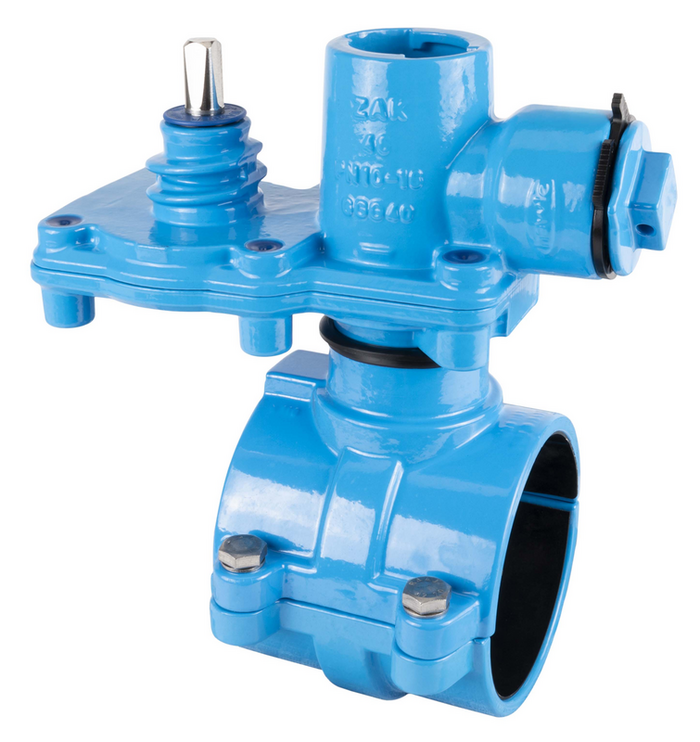

HAKU Hawlinger slewable with horizontal ZAK® outlet

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops. The slewable part permits a continuous alignment of the Hawlinger by 360°.

In combination with the ZAK® spigot end fittings the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device, shut-off blade: stainless steel.
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops. The slewable part permits a continuous alignment of the Hawlinger by 360°.

In combination with the ZAK® spigot end fittings the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.

L

Description
B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2377090500
 225 mm   150 mm 90 mm 261 mm 28 mm ZAK 46 8,40 kg
2377110500
 225 mm   170 mm 110 mm 281 mm 28 mm ZAK 46 9,00 kg
2377125500
 225 mm   190 mm 125 mm 296 mm 28 mm ZAK 46 9,30 kg
2377140500
 225 mm   205 mm 140 mm 311 mm 28 mm ZAK 46 9,90 kg
2377160500
 225 mm   230 mm 160 mm 331 mm 28 mm ZAK 46 10,20 kg
2377180500
 225 mm   248 mm 180 mm 352 mm 28 mm ZAK 46 11,50 kg
2377225500
 225 mm   301 mm 225 mm 399 mm 28 mm ZAK 46 13,00 kg
2400000009
   drainage fuction on request           0,00 kg
8700000000
   Surcharge for spindle bore           0,00 kg
