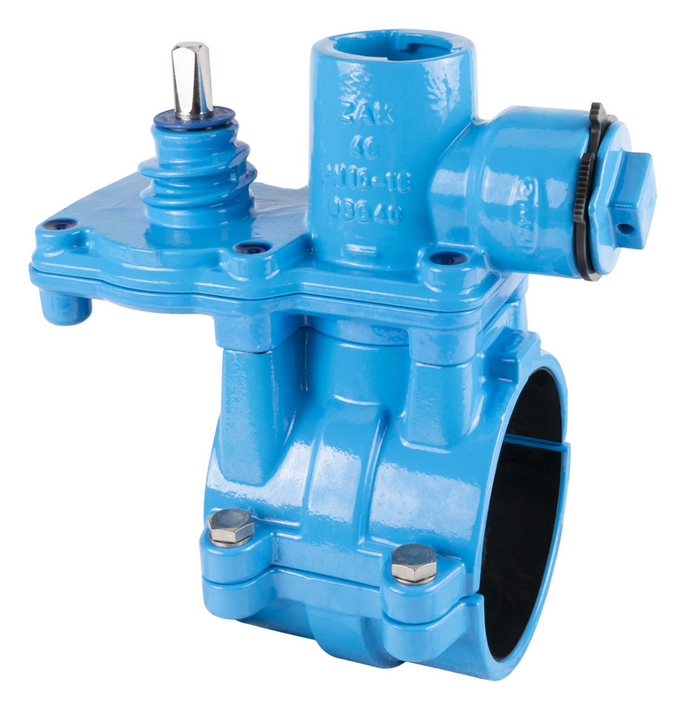

HAKU Hawlinger with horizontal ZAK® socket in pipe direction

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2370633200
 1) 172 mm   142 mm 63 mm 206 mm 24 mm ZAK 34 6,80 kg
2370633203
 2) 172 mm   125 mm 63 mm 231 mm 24 mm ZAK 34 6,10 kg
2370635003
 2) 227 mm   125 mm 63 mm 228 mm 36 mm ZAK 46 0,01 kg
2370755003
 2) 227 mm   142 mm 75 mm 245 mm 36 mm ZAK 46 0,00 kg
2370903200
   172 mm   151 mm 90 mm 234 mm 24 mm ZAK 34 6,90 kg
2370905000
   225 mm   171 mm 90 mm 229 mm 36 mm ZAK 46 8,70 kg
2371103200
   172 mm   170 mm 110 mm 254 mm 24 mm ZAK 34 7,30 kg
2371105000
   225 mm   170 mm 110 mm 254 mm 36 mm ZAK 46 9,10 kg
2371105050
 1) 225 mm   179 mm 110 mm 251 mm 36 mm ZAK 46 9,10 kg
2371253200
   172 mm   190 mm 125 mm 272 mm 24 mm ZAK 34 7,50 kg
2371255000
   225 mm   190 mm 125 mm 272 mm 36 mm ZAK 46 9,70 kg
2371403200
   172 mm   205 mm 140 mm 289 mm 24 mm ZAK 34 8,10 kg
2371405000
   225 mm   205 mm 140 mm 284 mm 36 mm ZAK 46 10,00 kg
2371603200
   172 mm   230 mm 160 mm 306 mm 24 mm ZAK 34 9,00 kg
2371605000
   225 mm   230 mm 160 mm 305 mm 36 mm ZAK 46 11,00 kg
2371805000
   229 mm   250 mm 180 mm 330 mm 36 mm ZAK 46 10,90 kg
2372253200
   172 mm   301 mm 225 mm 378 mm 24 mm ZAK 34 11,20 kg
2372255000
   225 mm   301 mm 225 mm 381 mm 36 mm ZAK 46 13,90 kg
2372505003
 2) 227 mm   347 mm 250 mm 418 mm 36 mm ZAK 46 18,20 kg
2372805003
 2) 234 mm   377 mm 280 mm 449 mm 36 mm ZAK 46 17,90 kg
2373155003
 2) 227 mm   408 mm 315 mm 494 mm 36 mm ZAK 46 19,80 kg
2400000009
     drainage fuction on request           0,00 kg
8700000000
     Surcharge for spindle bore           0,00 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.
2)
Factory assembled unser pressure drilling valve, HAKU drilling saddle and screw-in Hawlinger.
