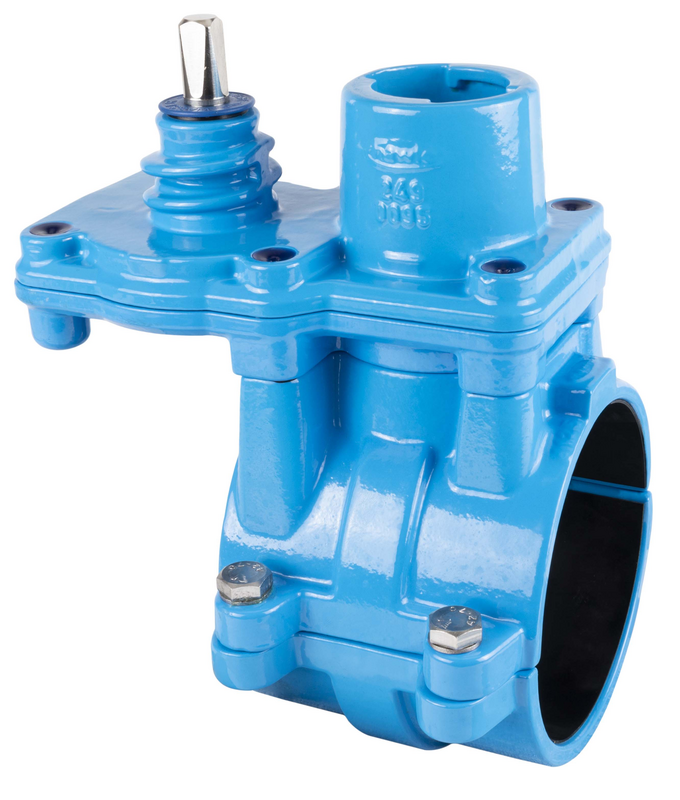

HAKU Hawlinger with vertical ZAK® socket

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2360633200
 1) 177 mm   142 mm 63 mm 206 mm 24 mm ZAK 34 6,30 kg
2360633203
 2) 165 mm   125 mm 63 mm 231 mm 24 mm ZAK 34 5,70 kg
2360635003
 2) 195 mm   125 mm 63 mm 228 mm 36 mm ZAK 46 7,00 kg
2360755003
 2) 200 mm   142 mm 75 mm 245 mm 36 mm ZAK 46 7,10 kg
2360903200
   175 mm   151 mm 90 mm 243 mm 24 mm ZAK 34 6,40 kg
2360905000
   205 mm   171 mm 90 mm 229 mm 36 mm ZAK 46 7,80 kg
2361103200
   175 mm   170 mm 110 mm 254 mm 24 mm ZAK 34 7,00 kg
2361105000
   205 mm   170 mm 110 mm 251 mm 36 mm ZAK 46 8,20 kg
2361106300
 3) 4) 205 mm   170 mm 110 mm 251 mm 45 mm ZAK 69 8,11 kg
2361253200
   175 mm   190 mm 125 mm 272 mm 24 mm ZAK 34 7,10 kg
2361255000
   205 mm   190 mm 125 mm 272 mm 36 mm ZAK 46 9,00 kg
2361256300
 3) 4) 205 mm   190 mm 125 mm 272 mm 45 mm ZAK 69 8,70 kg
2361403200
   175 mm   205 mm 140 mm 289 mm 24 mm ZAK 34 7,60 kg
2361405000
   205 mm   205 mm 140 mm 284 mm 36 mm ZAK 46 9,20 kg
2361406300
 3) 4) 205 mm   205 mm 140 mm 284 mm 45 mm ZAK 69 8,90 kg
2361603200
   175 mm   230 mm 160 mm 306 mm 24 mm ZAK 34 8,30 kg
2361605000
   205 mm   230 mm 160 mm 305 mm 36 mm ZAK 46 9,80 kg
2361606300
 3) 4) 205 mm   230 mm 160 mm 305 mm 45 mm ZAK 69 9,30 kg
2361805000
   205 mm   250 mm 180 mm 330 mm 36 mm ZAK 46 10,20 kg
2361806300
 3) 4) 205 mm   250 mm 180 mm 330 mm 45 mm ZAK 69 10,20 kg
2362253200
   175 mm   301 mm 225 mm 378 mm 24 mm ZAK 34 10,90 kg
2362255000
   205 mm   301 mm 225 mm 381 mm 36 mm ZAK 46 13,10 kg
2362256300
 3) 4) 205 mm   301 mm 225 mm 381 mm 45 mm ZAK 69 12,80 kg
2362505003
 2) 235 mm   347 mm 250 mm 418 mm 36 mm ZAK 46 17,70 kg
2362805003
 2) 235 mm   377 mm 280 mm 449 mm 36 mm ZAK 46 17,60 kg
2363155003
 2) 235 mm   408 mm 315 mm 494 mm 36 mm ZAK 46 20,70 kg
2400000009
     drainage fuction on request           0,00 kg
8700000000
     Surcharge for spindle bore           0,00 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.
2)
Factory-mounted service valve, consisting of HAKU drilling saddle and Hawlinger with lower tapered male thread.
3)
Standard spindle bore possible, not suitable for GW336.
4)
Max. standard drilling Ø 45 mm. Special drilling up to Ø 50 mm possible. In case of a drilling diameter between 46 mm - 50 mm, the special information given in the operating instructions must be complied with.
