Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
-
Product numbers for gas on request.
235-00

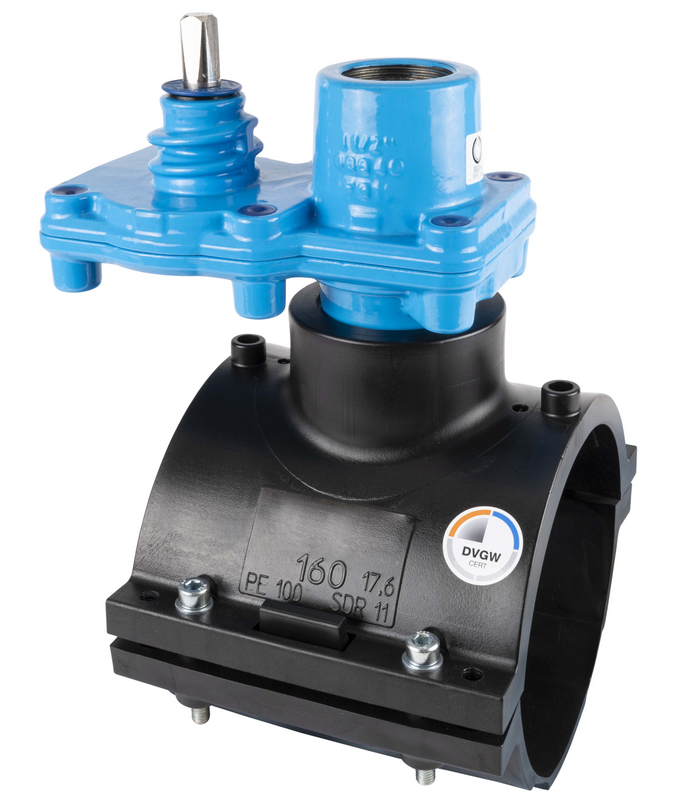

Hawlinger with upper vertical female thread outlet and lower electrofusion saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: EPDM acc. to KTW-BWGL for potable water Electrofusion saddle HA-WELD: PE 100 |
|---|---|
| Max. operating Pressure: |
Gas: 5 bar Potable water: 16 bar |
| Medium | Water / Gas |
Hawlingers with HA-WELD electrofusion saddles are to be used for welding onto PE pipes.
In combination with fittings, the upper female thread outlet is used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
L |
Description |
L1 |
B |
D |
H1 |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2350630320
|
170 mm | 68 mm | 105 mm | 63 mm | 140 mm | 24 mm | IG 1" | 3,80 kg | ||||
|
2350630400
|
170 mm | 68 mm | 105 mm | 63 mm | 140 mm | 24 mm | IG 1 1/4" | 3,80 kg | ||||
|
2350900500
|
200 mm | 82 mm | 160 mm | 90 mm | 145 mm | 36 mm | IG 1 1/2" | 7,30 kg | ||||
|
2351100500
|
215 mm | 82 mm | 170 mm | 110 mm | 145 mm | 36 mm | IG 1 1/2" | 7,40 kg | ||||
|
2351250500
|
215 mm | 82 mm | 190 mm | 125 mm | 160 mm | 36 mm | IG 1 1/2" | 7,60 kg | ||||
|
2351600500
|
220 mm | 82 mm | 230 mm | 160 mm | 160 mm | 36 mm | IG 1 1/2" | 7,90 kg | ||||
|
2351800500
|
220 mm | 82 mm | 245 mm | 180 mm | 160 mm | 36 mm | IG 1 1/2" | 8,10 kg | ||||
|
2352250500
|
220 mm | 82 mm | 255 mm | 225 mm | 150 mm | 36 mm | IG 1 1/2" | 8,40 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | ||||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Technical Documents
|
|---|
| declaration of conformity other fittings |
|
Operating instructions
|
|---|
| Operating and maintenance instructions for - Hawlinger® service valve |
