231-00G

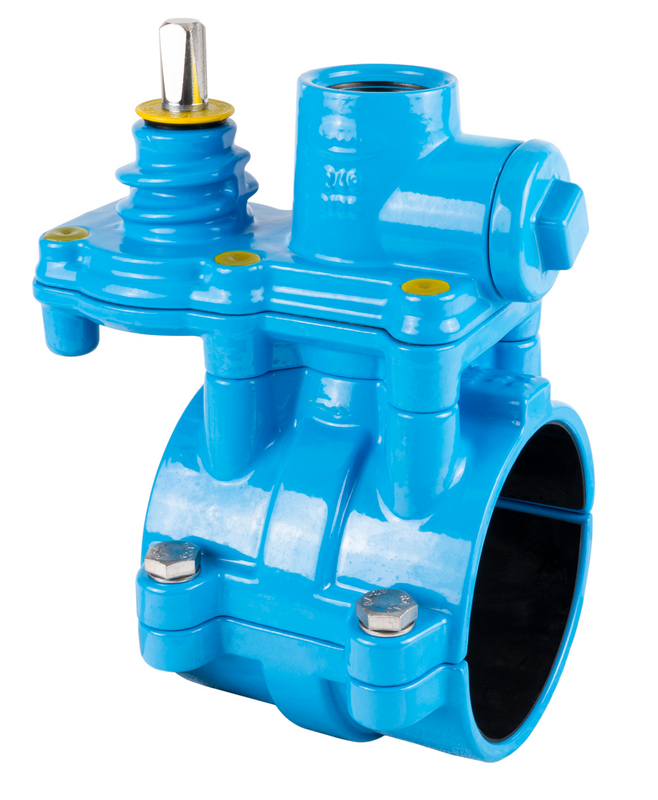

HAKU Hawlinger for gas with horizontal female thread outlet in pipe direction
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas |
|---|---|
| Max. operating Pressure: | Gas: 1 bar (only PVC) |
| Medium | Gas |
HAKU Hawlinger pipe drilling saddles are to be used for installation on PVC pipes acc. to DIN EN 8062. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.
In combination with fittings, the upper female thread outlets are used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
|
Order Nr.
|
L |
L1 |
L2 |
B |
D |
H2 |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2310905005
|
225 mm | 82 mm | 120 mm | 155 mm | 90 mm | 130 mm | 36 mm | IG 1 1/2" | 8,20 kg | |||
|
2311105005
|
225 mm | 82 mm | 120 mm | 170 mm | 110 mm | 130 mm | 36 mm | IG 1 1/2" | 8,70 kg | |||
|
2311605005
|
225 mm | 82 mm | 120 mm | 230 mm | 160 mm | 130 mm | 36 mm | IG 1 1/2" | 10,30 kg | |||
|
2312255005
|
225 mm | 82 mm | 120 mm | 305 mm | 225 mm | 130 mm | 36 mm | IG 1 1/2" | 12,10 kg |
