231-00

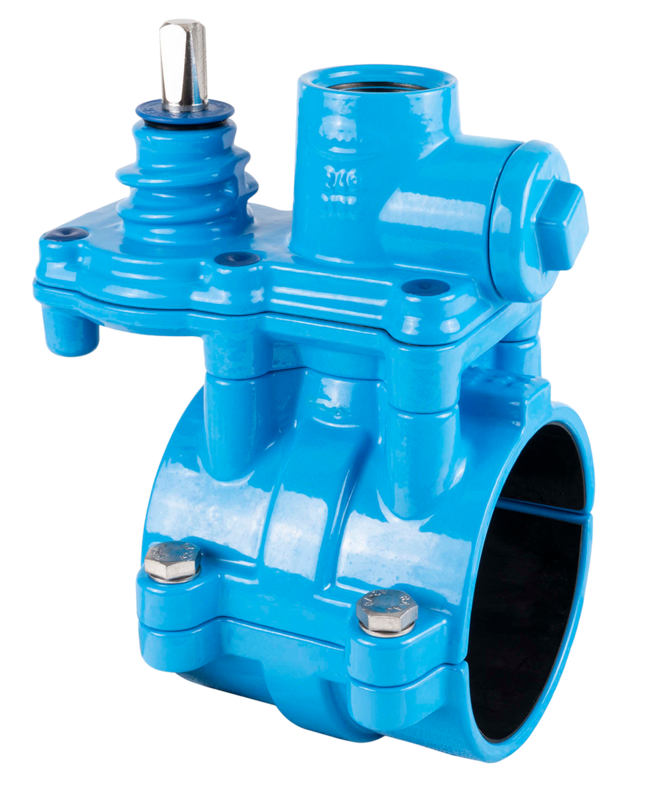

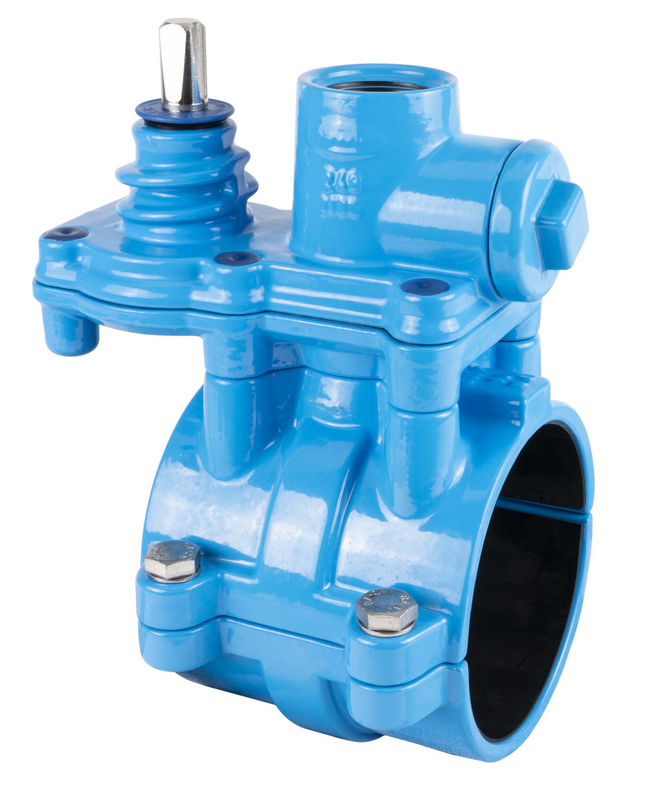

HAKU Hawlinger with horizontal female thread outlet in pipe direction

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with fittings, the upper female thread outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

In combination with fittings, the upper female thread outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List

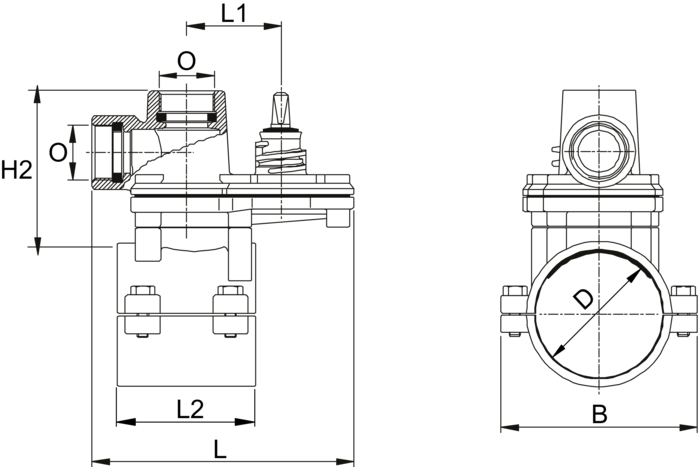

Order Nr.
*)
L

Description
L1
L2
B
D
H2
Borehole max.
Outlet O
 Medium Weight Specification Basket
2310633200
 1) 175 mm   68 mm 120 mm 155 mm 63 mm 125 mm 24 mm IG 1" 6,70 kg
2310903200
   195 mm   68 mm 120 mm 155 mm 90 mm 120 mm 24 mm IG 1" 6,60 kg
2310904000
   195 mm   68 mm 120 mm 155 mm 90 mm 120 mm 24 mm IG 1 1/4" 6,60 kg
2310905000
   225 mm   82 mm 120 mm 155 mm 90 mm 130 mm 36 mm IG 1 1/2" 8,20 kg
2311103200
   195 mm   68 mm 120 mm 170 mm 110 mm 120 mm 24 mm IG 1" 7,30 kg
2311104000
   195 mm   68 mm 120 mm 170 mm 110 mm 120 mm 24 mm IG 1 1/4" 7,30 kg
2311105000
   225 mm   82 mm 120 mm 170 mm 110 mm 130 mm 36 mm IG 1 1/2" 8,70 kg
2311105005
   225 mm   82 mm 120 mm 170 mm 110 mm 130 mm 36 mm IG 1 1/2" 8,70 kg
2311253200
   195 mm   68 mm 120 mm 190 mm 125 mm 120 mm 24 mm IG 1" 9,40 kg
2311254000
   195 mm   68 mm 120 mm 190 mm 125 mm 120 mm 24 mm IG 1 1/4" 9,40 kg
2311255000
   225 mm   82 mm 120 mm 190 mm 125 mm 130 mm 36 mm IG 1 1/2" 10,10 kg
2311403200
   195 mm   68 mm 120 mm 205 mm 140 mm 120 mm 24 mm IG 1" 9,60 kg
2311404000
   195 mm   68 mm 120 mm 205 mm 140 mm   24 mm IG 1 1/4" 9,60 kg
2311405000
   225 mm   82 mm 120 mm 205 mm 140 mm 130 mm 36 mm IG 1 1/2" 10,30 kg
2311603200
   195 mm   68 mm 120 mm 230 mm 160 mm 120 mm 24 mm IG 1" 9,50 kg
2311604000
   195 mm   68 mm 120 mm 230 mm 160 mm 120 mm 24 mm IG 1 1/4" 9,50 kg
2311605000
   225 mm   82 mm 120 mm 230 mm 160 mm 130 mm 36 mm IG 1 1/2" 10,30 kg
2311605005
   225 mm   82 mm 120 mm 230 mm 160 mm 130 mm 36 mm IG 1 1/2" 10,30 kg
2311805000
   225 mm   82 mm 120 mm 250 mm 180 mm 130 mm 36 mm IG 1 1/2" 11,00 kg
2312253200
   195 mm   68 mm 120 mm 305 mm 225 mm 120 mm 24 mm IG 1" 12,10 kg
2312254000
   195 mm   68 mm 120 mm 305 mm 225 mm 120 mm 24 mm IG 1 1/4" 12,10 kg
2312255000
   225 mm   82 mm 120 mm 305 mm 225 mm   36 mm IG 1 1/2" 12,80 kg
2312255005
   225 mm   82 mm 120 mm 305 mm 225 mm 130 mm 36 mm IG 1 1/2" 12,10 kg
2400000009
     drainage fuction on request               0,00 kg
8700000000
     Surcharge for spindle bore               0,00 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.

Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
