230-00G

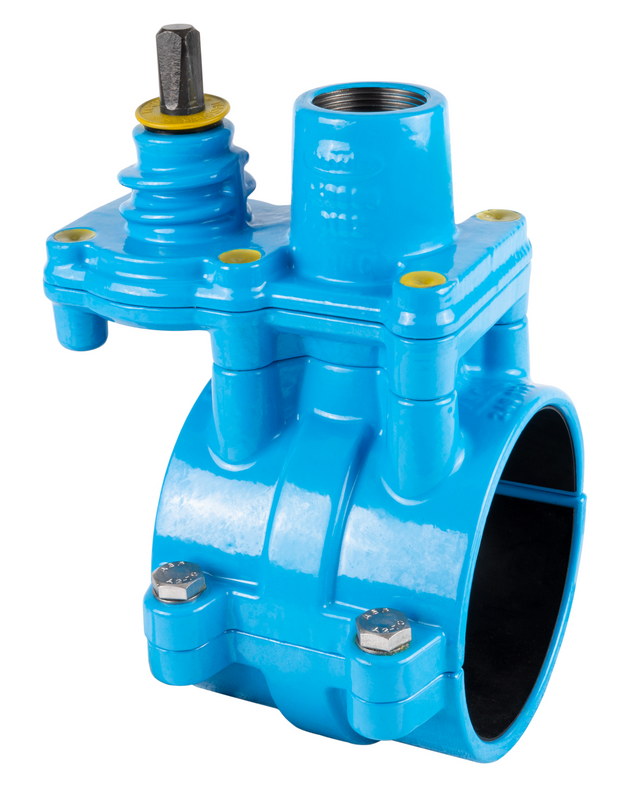

HAKU Hawlinger with vertical female thread outlet
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas |
|---|---|
| Max. operating Pressure: | Gas: 1 bar (only PVC) |
| Medium | Gas |
HAKU Hawlinger pipe drilling saddles are to be used for installation on PVC pipes acc. to DIN EN 8062. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.
The upper female thread outlet in combination with fittings is used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
|
Order Nr.
|
L |
L1 |
L2 |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2301605005
|
205 mm | 82 mm | 120 mm | 230 mm | 160 mm | 304 mm | 36 mm | IG 1 1/2" | 0,00 kg | |||
|
2302253205
|
175 mm | 68 mm | 120 mm | 300 mm | 225 mm | 376 mm | 24 mm | IG 1" | 10,95 kg | |||
|
2302255005
|
205 mm | 82 mm | 120 mm | 300 mm | 225 mm | 381 mm | 36 mm | IG 1 1/2" | 10,80 kg |
