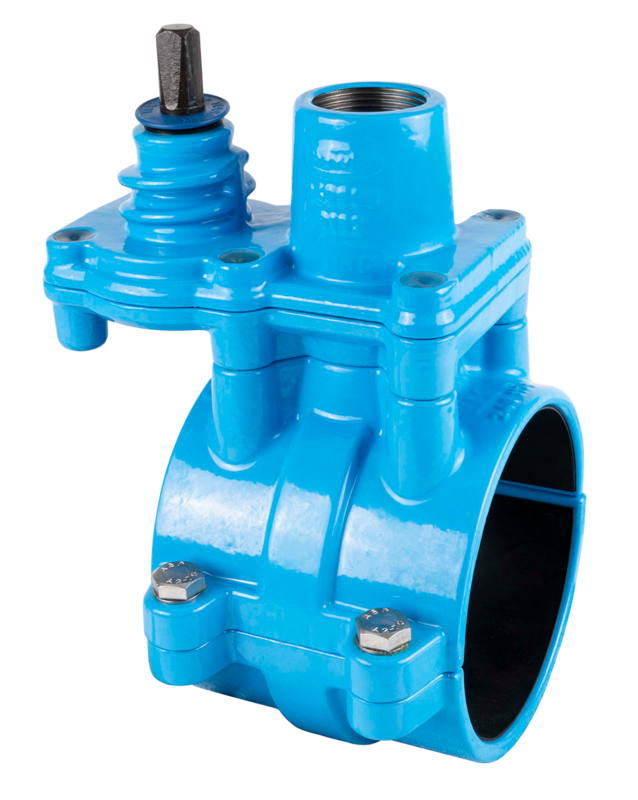

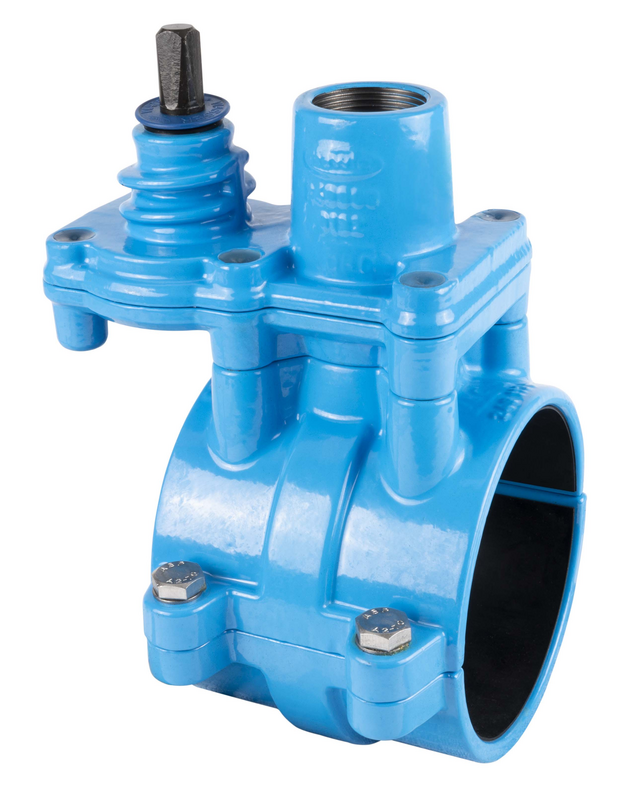

HAKU Hawlinger with vertical female thread outlet

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The upper female thread outlet in combination with fittings is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

HAKU Hawlinger pipe drilling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The upper female thread outlet in combination with fittings is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
L1
L2
B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2300633200
 1) 175 mm   68 mm 120 mm 142 mm 63 mm 205 mm 24 mm IG 1" 6,30 kg
2300634000
 1) 175 mm   68 mm 120 mm 142 mm 63 mm 205 mm 24 mm IG 1 1/4" 6,30 kg
2300903200
   175 mm   68 mm 120 mm 151 mm 90 mm 232 mm 24 mm IG 1" 6,40 kg
2300904000
   175 mm   68 mm 120 mm 151 mm 90 mm 232 mm 24 mm IG 1 1/4" 6,40 kg
2300905000
   205 mm   82 mm 120 mm 170 mm 90 mm 227 mm 36 mm IG 1 1/2" 7,00 kg
2301103200
   175 mm   68 mm 120 mm 170 mm 110 mm 254 mm 24 mm IG 1" 6,90 kg
2301104000
   175 mm   68 mm 120 mm 170 mm 110 mm 254 mm 24 mm IG 1 1/4" 6,90 kg
2301105000
   205 mm   82 mm 120 mm 170 mm 110 mm 251 mm 36 mm IG 1 1/2" 7,40 kg
2301253200
   175 mm   68 mm 120 mm 190 mm 125 mm 270 mm 24 mm IG 1" 7,00 kg
2301254000
   175 mm   68 mm 120 mm 190 mm 125 mm 270 mm 24 mm IG 1 1/4" 7,00 kg
2301255000
   205 mm   82 mm 120 mm 190 mm 125 mm 270 mm 36 mm IG 1 1/2" 9,00 kg
2301403200
   175 mm   68 mm 120 mm 205 mm 140 mm 287 mm 24 mm IG 1" 7,70 kg
2301404000
   175 mm   68 mm 120 mm 205 mm 140 mm 287 mm 24 mm IG 1 1/4" 7,70 kg
2301405000
   205 mm   82 mm 120 mm 205 mm 140 mm 283 mm 36 mm IG 1 1/2" 8,30 kg
2301603200
   175 mm   68 mm 120 mm 230 mm 160 mm 305 mm 24 mm IG 1" 8,50 kg
2301604000
   175 mm   68 mm 120 mm 230 mm 160 mm 305 mm 24 mm IG 1 1/4" 8,50 kg
2301605000
   205 mm   82 mm 120 mm 230 mm 160 mm 304 mm 36 mm IG 1 1/2" 9,00 kg
2301805000
   205 mm   82 mm 120 mm 250 mm 180 mm 330 mm 36 mm IG 1 1/2" 10,20 kg
2302253200
   175 mm   68 mm 120 mm 300 mm 225 mm 376 mm 24 mm IG 1" 10,90 kg
2302254000
   175 mm   68 mm 120 mm 300 mm 225 mm 376 mm 24 mm IG 1 1/4" 10,90 kg
2302255000
   205 mm   82 mm 120 mm 300 mm 225 mm 381 mm 36 mm IG 1 1/2" 11,40 kg
2400000009
     drainage fuction on request               0,00 kg
8700000000
     Surcharge for spindle bore               0,00 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.

Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
