229-05G

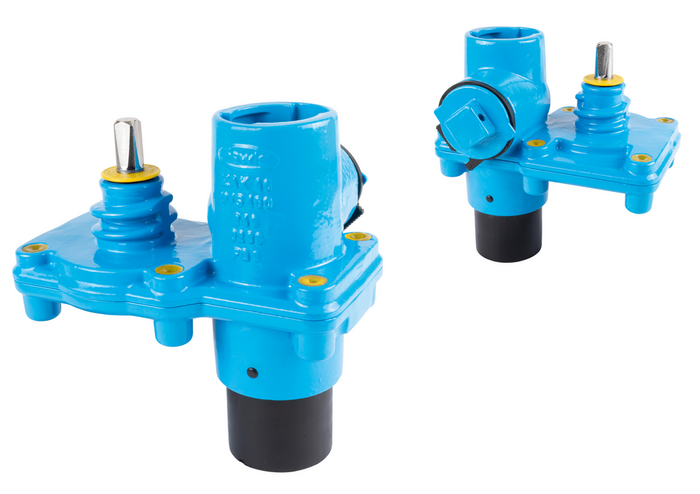

Hawlinger for gas with upper horizontal ZAK® socket 90° to pipe direction and lower PE fusion end

Hawlingers with lower PE-X fusion end are to be used for welding into electrofusion saddles +GF+ type ELGEF® Plus.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Fusion end: PE
Gaskets: NBR for gas
Max. operating Pressure: Gas: 5 bar
Medium Gas

Hawlingers with lower PE-X fusion end are to be used for welding into electrofusion saddles +GF+ type ELGEF® Plus.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

Contacts
Wish List
Order Nr.

L

B
D
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2295500635
 195 mm 129 mm 63 mm 193 mm 36 mm ZAK 46 6,80 kg
