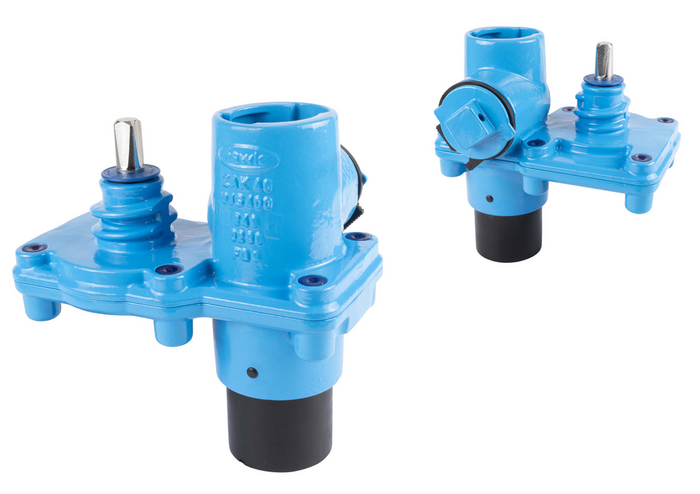

Hawlinger with upper horizontal ZAK® socket 90° to pipe direction and lower PE fusion end
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Fusion end: PE Gaskets: EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawlingers with lower PE-X fusion end are to be used for welding into electrofusion saddles +GF+ type ELGEF® Plus.
In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
L |
Description |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2295320630
|
165 mm | 110 mm | 63 mm | 193 mm | 24 mm | ZAK 34 | 5,00 kg | ||||
|
2295500630
|
195 mm | 129 mm | 63 mm | 193 mm | 36 mm | ZAK 46 | 6,80 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | |||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
