226-00G

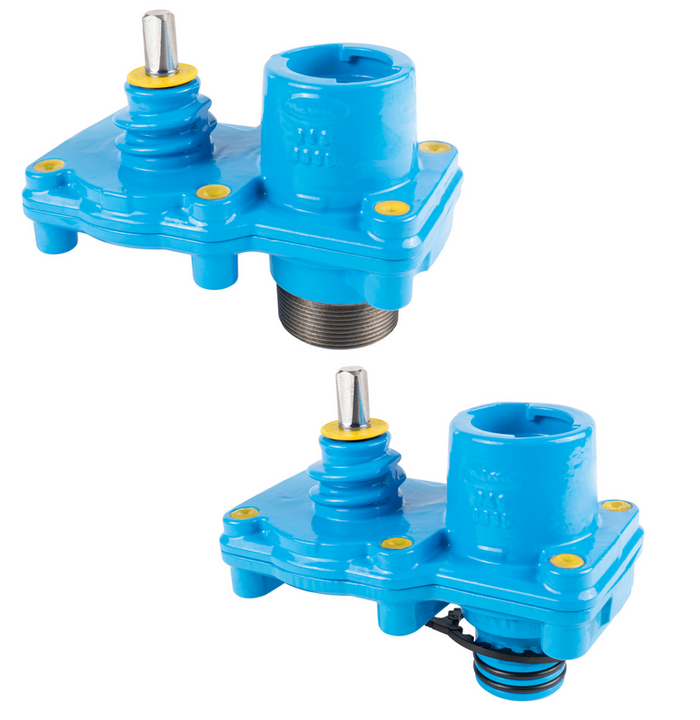

Hawlinger with upper vertical ZAK® socket and lower tapered male thread or lower ZAK® spigot end for installation on pipe saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas |
|---|---|
| Max. operating Pressure: | Gas: 5 bar |
| Medium | Gas |
Lower connection with ZAK® spigot end:
Hawlinger with ZAK® spigot end for the restraint connection in pipe drilling saddles with ZAK® socket (e.g. HAKU pipe drilling saddle, model no. 525-01 or universal pipe drilling saddle, model no. 352-00)
Lower connection with male thread:
Hawlinger with tapered male thread for installation in pipe drilling saddles with cylindrical female thread (e.g. HAKU pipe drilling saddle, model no. 525-01 or universal pipe drilling saddle, model no. 352-01)
In combination with the ZAK® spigot end fittings, the upper vertical ZAK® socket outlet is used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
|
Order Nr.
|
Lower outlet |
Upper outlet |
L |
B |
H |
Borehole max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2260500465
|
ZAK 46 | ZAK 46 | 195 mm | 125 mm | 158 mm | 28 mm | 5,10 kg | |||
|
2260500635
|
male thread 2" conical | ZAK 46 | 195 mm | 125 mm | 153 mm | 36 mm | 4,75 kg |
