Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
220-00

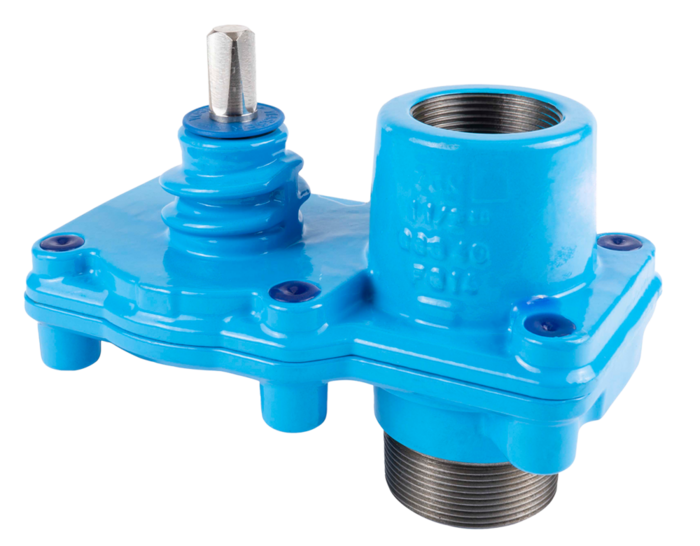

Hawlinger with upper vertical female thread outlet and lower tapered male thread for installation on pipe saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: EPDM KTW-BWGL for portable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
The Hawlinger with lower tapered male thread outlet is to be used for installation in pipe drilling saddles with cylindrical female thread (e.g. HAKU pipe saddle, model no. 525-00, or universal pipe saddle, model no. 352-01).
In combination with fittings, the upper female thread outlet is used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
L |
Description |
L1 |
B |
H1 |
Borehole max. |
Outlet O1 |
Outlet O2 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200320400
|
165 mm | 68 mm | 100 mm | 130 mm | 24 mm | IG 1" | AG 1 1/4" konisch | 3,50 kg | ||||
|
2200400400
|
165 mm | 68 mm | 100 mm | 130 mm | 24 mm | IG 1 1/4" | AG 1 1/4" konisch | 3,50 kg | ||||
|
2200400500
|
165 mm | 68 mm | 100 mm | 130 mm | 24 mm | IG 1 1/4" | AG 1 1/2" konisch | 4,00 kg | ||||
|
2200500000
|
195 mm | 82 mm | 125 mm | 145 mm | 36 mm | IG 1 1/2" | AG 2" konisch | 4,70 kg | ||||
|
2200510000
|
195 mm | 82 mm | 125 mm | 145 mm | 28 mm | IG 1 1/2" | AG 1 1/2" konisch | 4,70 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | ||||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Technical Documents
|
|---|
| declaration of conformity other fittings |
|
Operating instructions
|
|---|
| Operating and maintenance instructions for - Hawlinger® service valve |
