- 1)
- Ord. No. 212 000 0000: including integrated valve cover with locking pin for Hawlinger for later drilling with cover inscription: “NA“ Suitable base plate for surface box Ord. No. 2042000212.
212-00
Surface box with cover, rectangular
| Material: |
Surface box: GJL-250, bituminized Cover and gripping pins: GJS-400, with anti-rust priming coat Locking pin: stainless steel |
|---|---|
| Medium | Water / Sewage |
The surface box model no. 212-00 is mainly used for installation in paved traffic areas.
The cover can be locked. For unlocking the cover the transition adaptor (model no. 2120000010) combined with a valve operating key can be used.
There are three design variants:
Model no. 2120000000: for Hawlinger for later drilling, with cover marking: "NA"
Model no. 2120400000: for flushing valve (sewage water model no. 985) with cover marking: "Sewage Water"

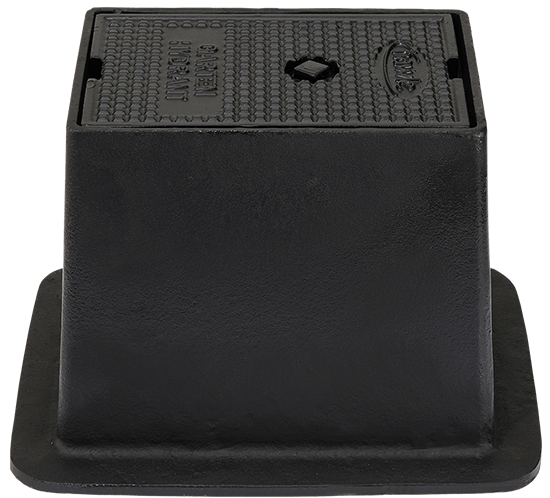

Model no. 2120500000: for garden hydrant (model no. 984) with cover marking "GARTENHYDRANT"
|
Order Nr.
|
*) |
L |
L1 |
B |
B1 |
h1 |
Cover inscription |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2120000000
|
1) | 364 mm | 270 mm | 279 mm | 185 mm | 250 mm | NA | 22,00 kg | |||
|
2120400000
|
364 mm | 270 mm | 279 mm | 185 mm | 250 mm | Abwasser | 25,20 kg | ||||
|
2120500000
|
364 mm | 270 mm | 279 mm | 185 mm | 250 mm | Garten Hydrant | 25,20 kg |
-
The cover can be locked. For unlocking the cover, the transition adapter (Ord. No. 212 000 0010) in combination with a valve key can be used.
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 204-05 | Base plate of concrete for surface box model no. 212 |
| 212-02 | Transition adaptor for surface box model no. 212 |
| 341-00 | Operating key acc. to DIN 3223 - (Ord.-No. 341 Valve key / Ord.-No 342 Gate valve key) |
