Suitable extension ring for surface box (H = 20 mm) Ord. No. 211 000 2000.
211-04

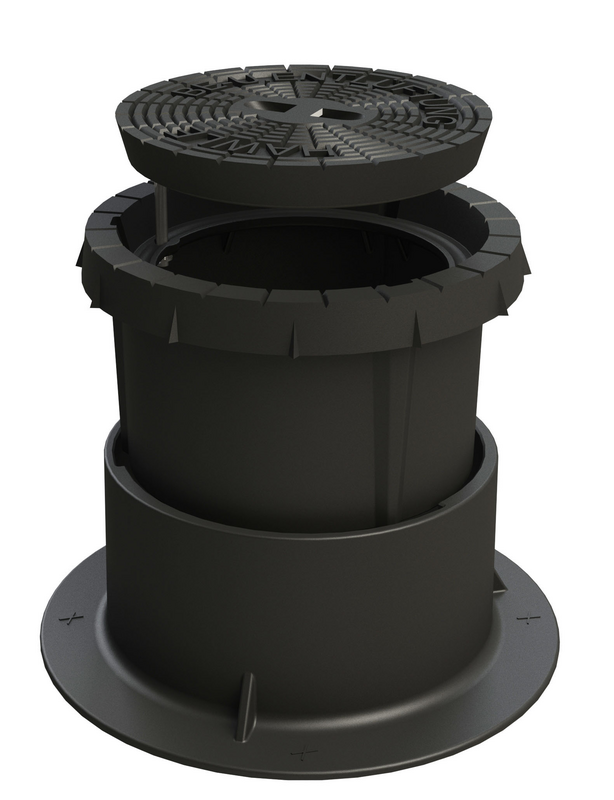

Surface box for rolling in, with locking bolt
| Material: |
Surface box: GJL-200 Drawing ring: GJL-250 Cover: GJL-250, Hawle epoxy powder coated Positioning pin: stainless steel |
|---|---|
| Medium | Water |
The Hawle surface box Ord. Nor. 211-04 for Air valve set Ord. No. 992-00, 992-01, 992-02 and 993-00, Hawle underground hydrants ord.-nr. 490-00, 490-01, 494-00 and Hawle Pro butterfly Ord. No. 500-00 in is to be used for installation in bituminous traffic areas. The drawing ring permits a large adjusting range.
During rolling in a bond is created between the drawing ring and the asphalt. Thus the traffic load is discharged into the base course. This bond ensures that the surface box remains on the same level as the road surface.
The absorber ring prevents contact corrosion between the cover and the box, on the one hand, and ensures easy loosening and reduced rattling tendency of the cover, on the other hand.
|
Order Nr.
|
d 1 |
d 2 |
h5 |
Cover inscription |
Description |
S max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2111000000
|
525 mm | 399 mm | 250-420 mm | Be- und Entlüftung | Cap complete | 40 mm - 170 mm | 62,48 kg | |||
|
2111000001
|
525 mm | 399 mm | 250-420 mm | Hydrant | Cap complete | 40 mm - 170 mm | 62,48 kg | |||
|
2111000003
|
525 mm | 399 mm | 250-420 mm | Klappe | Cap complete | 40 mm - 170 mm | 62,48 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Surface boxes for rolling in |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 204-04 | Base plate of concrete for surface box model no. 211-00, 211-04 |
