206-01

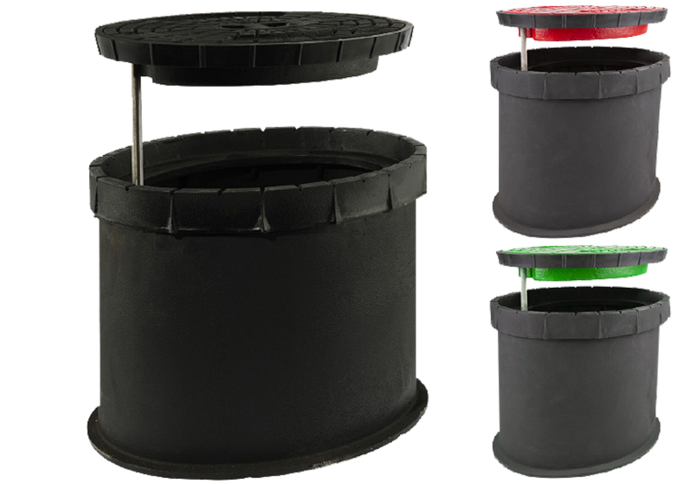

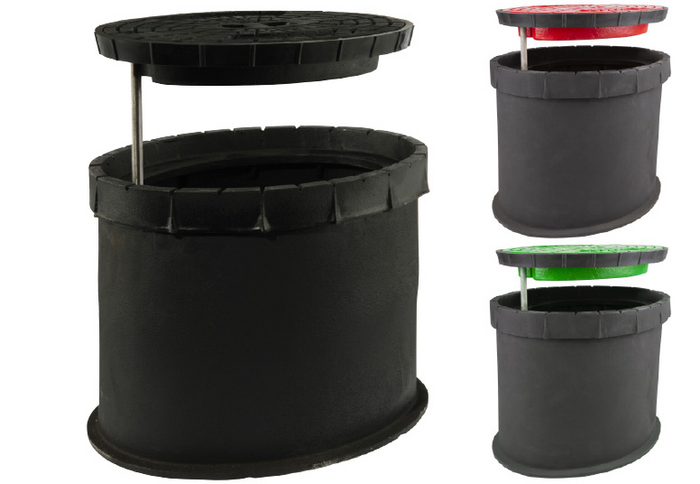

Surface box for rolling in, with locking bolt
| Material: |
Surface box, drawing ring: GJL-250, bituminized Cover: GJS-400, bituminized Positioning pin: stainless steel Absorber ring: polychloroprene |
|---|---|
| Medium | Water / Sewage |
The Hawle hydrant surface box for rolling in is to be used for installation in bituminous traffic areas. The drawing ring permits a large adjusting range.
During rolling in a bond is created between the drawing ring and the asphalt. Thus the traffic load is discharged into the base course. This bond ensures that the surface box remains on the same level as the road surface.
The absorber ring between the cover and the box prevents contact corrosion between the cover and the box, on the one hand, and ensures easy loosening as well as reduced rattling tendency of the cover, on the other hand.
|
Order Nr.
|
d 1 |
d 2 |
B |
h5 |
Cover inscription |
Description |
S max. |
Medium | Weight | Specification | 3D | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2060830000
|
412 mm | 400 mm | 307 mm | 310-520 mm | Hydrant | Cap complete with black cover | 40 mm - 180 mm | 52,42 kg | ||||
|
2060830010
|
420 mm | 412 mm | 307 mm | 310-520 mm | Hydrant | Cap complete with red cover | 40 mm - 180 mm | 49,60 kg | ||||
|
2060830040
|
420 mm | 412 mm | 307 mm | 310-520 mm | Abwasser | Cap complete with green cover | 40 mm - 180 mm | 52,40 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Surface boxes for rolling in |
|
Article Nr.
|
Product description |
|---|---|
| 204-08 | Base plate for hydrant surface box |
| 206-04 | Brake ring kit for surface box for rolling in, Ord. No. 206-01 |
