200-00

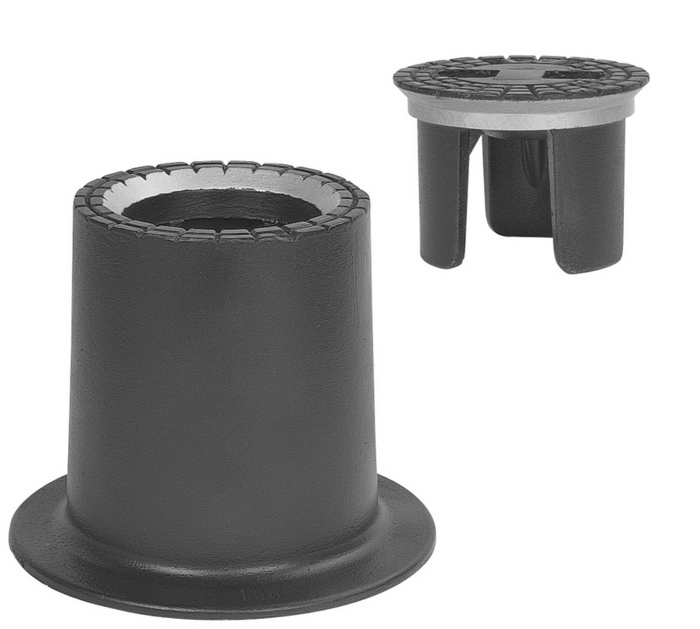

Surface box rigid version
| Material: |
Surface box: GJL-250, bituminized Cover: GJS-400, Hawle epoxy powder coated |
|---|---|
| Medium | Water |
The Hawle surface box for gate valves is preferably used for installation in paved traffic areas. For height adjustment extension rings (model no. 201-00) can be put on.
Compared with conventional surface boxes the angle seat at the box and the cover reduces the rattling tendency of the cover.
To avoid contact corrosion between the cover and the box and to ensure that the cover can be loosened easily, the latter is powder coated.
|
Order Nr.
|
Cover inscription |
d 1 |
Description |
d 2 |
d 3 |
d 4 |
h1 |
h2 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2000020000
|
W | Cover | 3,00 kg | |||||||||
|
2000030000
|
W | 270 mm | complete surface box | 120 mm | 180 mm | 135 mm | 220 mm | 98 mm | 12,80 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions for Surface box for valves/gate valves rigid version |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 204-00 | Universal base plate for surface boxes for gate valves and valves |
| 204-01 | BAIO® base plate for gate valve surface box |
| 204-02 | Base plate of concrete for surface boxes for gate valves |
