180-01

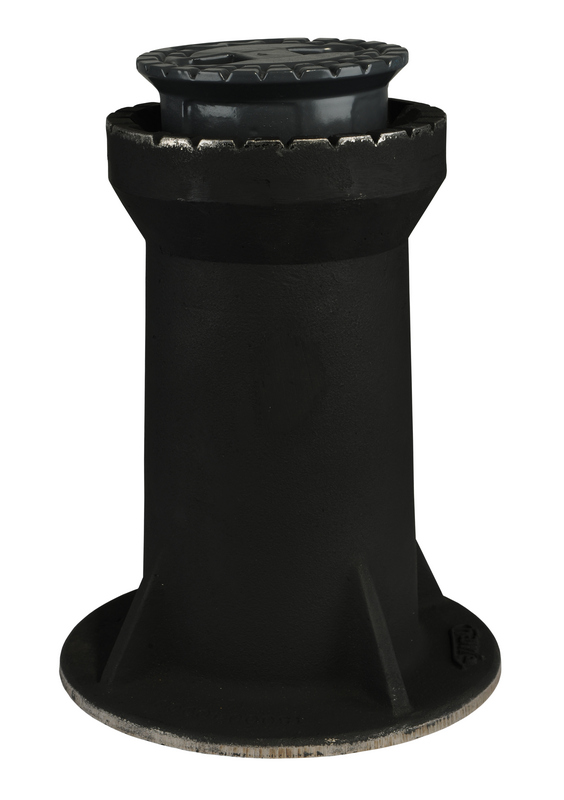

Valve cap rigid version, with locking bolt
| Material: |
Cap: GJL-200, bituminised Cover: GJS-400, Hawle epoxy powder coated Locking bolt: stainless steel |
|---|---|
| Medium | Water / Gas / Sewage |
The Hawle valve cap is preferred for installation and use in bituminous traffic surfaces.
Compared to conventional surfaces boxes the slanted seating on the cover and cap reduce the flap inclination of the cover.
The cover is powder-coated to prevent contact corrosion between cover and cap and to ensure easy release of the cover.
The cover is connected to the cap with a locking bolt with splint and washer.
Size: in accordance with DIN 4057
|
Order Nr.
|
d 1 |
d 2 |
d 3 |
h1 |
Cover inscription |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
1800050000
|
200 mm | 115 mm | 145 mm | 250 mm | W | 8,25 kg | |||
|
1800050010
|
200 mm | 115 mm | 145 mm | 250 mm | Gas | 8,25 kg | |||
|
1800050030
|
200 mm | 115 mm | 145 mm | 250 mm | A | 8,25 kg |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 204-00 | Universal base plate for surface boxes for gate valves and valves |
| 204-03 | Insert for concrete base plate |
