Pressure reducing valve for electric actuation - open at zero current

- Pressure reduction for network supply.
- Emergency feeding into a second network
- The main valve is put in operation via the solenoid valve (control system has to be provided by the customer).

Infinitely adjustable outlet pressure between 1 - 15 bar
The pressure reducing valve reduces a variable inlet pressure to a constant outlet pressure, independent of varying flow rates.
At zero current the main valve is in operation.

Outlet pressure adjustable between 1 – 15 bar
Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar
Including optical position indicator and vent screw

For rating, please specify the following:
- Max. flow rate
- Average flow rate
- Min. flow rate
- Inlet pressure
- Outlet pressure:
- Voltage (e.g. 24 V / 230 V)
- Type of power (alternating current / direct current)
- Version (open at zero current - Order No. 1504 /closed at zero current Order No. 1503)

Components:

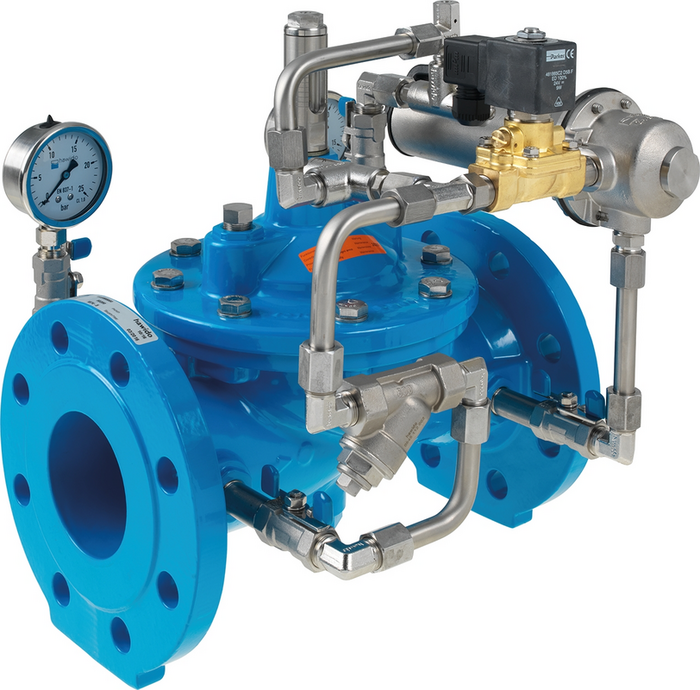

1: main valve
2: ball valve (A, B, C)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve (A, B)
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: electric solenoid valve

read more reduce
Material: Parts of the body: GJS-400, Hawle epoxy powder coated
Control line: stainless steel
Diaphragms, seals: EPDM acc. to KTW-BWGL for water
Pilot valve: stainless steel
Solenoid valve: stainless steel
Max. operating Pressure: See table
Medium Water

- Pressure reduction for network supply.
- Emergency feeding into a second network
- The main valve is put in operation via the solenoid valve (control system has to be provided by the customer).

Infinitely adjustable outlet pressure between 1 - 15 bar
The pressure reducing valve reduces a variable inlet pressure to a constant outlet pressure, independent of varying flow rates.
At zero current the main valve is in operation.

Outlet pressure adjustable between 1 – 15 bar
Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar
Including optical position indicator and vent screw

For rating, please specify the following:
- Max. flow rate
- Average flow rate
- Min. flow rate
- Inlet pressure
- Outlet pressure:
- Voltage (e.g. 24 V / 230 V)
- Type of power (alternating current / direct current)
- Version (open at zero current - Order No. 1504 /closed at zero current Order No. 1503)

Components:
1: main valve
2: ball valve (A, B, C)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve (A, B)
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: electric solenoid valve

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
L
Medium Weight Specification Basket
150400400
   IG 1 1/2" 16 bar 10/16 210 mm 11,00 kg
150400410
   IG 2" 16 bar 10/16 210 mm 11,00 kg
150404010
   40 16 bar 10/16 200 mm 13,00 kg
150405010
 1) 50 16 bar 10/16 230 mm 17,00 kg
150406510
   65 16 bar 10/16 290 mm 21,00 kg
150408010
 1) 80 16 bar 10/16 310 mm 27,00 kg
150410010
 1) 100 16 bar 10/16 350 mm 35,00 kg
150412510
   125 16 bar 10/16 400 mm 51,00 kg
150415010
 1) 150 16 bar 10/16 480 mm 60,00 kg
150420010
   200 10 bar 10 600 mm 114,00 kg
150420020
   200 16 bar 16 600 mm 114,00 kg
150425010
   250 10 bar 10 730 mm 247,00 kg
150425020
   250 16 bar 16 730 mm 247,00 kg
150430010
   300 10 bar 10 850 mm 358,00 kg
150430020
   300 16 bar 16 850 mm 358,00 kg
Wish List
1)
Also available as angled type, article numbers and prices on request.

PN 25 on request (up to DN 200)
