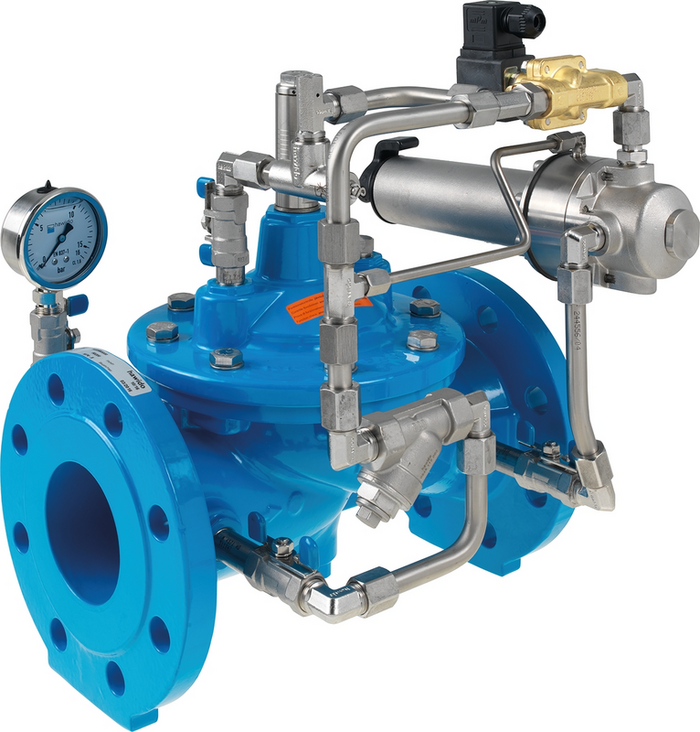

Safety / pressure retention valve for electric actuation - open at zero current

Description:
The relieving or retention pressure of the safety / pressure retention valve is infinitely adjustable between 1,5 - 12 bar via the pilot valve. Any excessive system pressure is relieved via the main valve opening quickly. The electric solenoid valve controls the filling and emptying of the pilot chamber. The main valve is opened at zero current and closed when energized. To avoid water hammers, the closing rate is adjustable via the throttle check valve.

Version / position of main valve:
- Closed at zero current (model no. 1403)
- Open at zero current (model no. 1404)

Use:
- Protection of a system from excess pressure (safety valve)
- Retention of preset system pressure in the upstream pipe network (pressure retention valve)

Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar

For rating, please specify the following:
- Flow (max.)
- Inlet pressure (P1 side)
- Retention pressure and/or relieving pressure (P2 side)
- Holding pressure / back pressure
- Voltage (e.g. 24 V / 230 V)
- Type of power (alternating current / direct current)
- Type 1403 or 1404

Components:
1: main valve
2: ball valve
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: electric solenoid valve

read more reduce
Material: Body parts: GJS-400, Hawle epoxy powder coated
Control line: stainless steel
Diaphragms, gaskets: EPDM acc. to KTW-BWGL for water
Pilot valve: stainless steel
Solenoid valve: brass, stainless steel
Max. operating Pressure: See table
Medium Water

Description:
The relieving or retention pressure of the safety / pressure retention valve is infinitely adjustable between 1,5 - 12 bar via the pilot valve. Any excessive system pressure is relieved via the main valve opening quickly. The electric solenoid valve controls the filling and emptying of the pilot chamber. The main valve is opened at zero current and closed when energized. To avoid water hammers, the closing rate is adjustable via the throttle check valve.

Version / position of main valve:
- Closed at zero current (model no. 1403)
- Open at zero current (model no. 1404)

Use:
- Protection of a system from excess pressure (safety valve)
- Retention of preset system pressure in the upstream pipe network (pressure retention valve)

Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar

For rating, please specify the following:
- Flow (max.)
- Inlet pressure (P1 side)
- Retention pressure and/or relieving pressure (P2 side)
- Holding pressure / back pressure
- Voltage (e.g. 24 V / 230 V)
- Type of power (alternating current / direct current)
- Type 1403 or 1404

Components:
1: main valve
2: ball valve
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: electric solenoid valve

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
L
Medium Weight Specification Basket
140400400
   IG 1 1/2" 16 bar 10/16 210 mm 11,00 kg
140400410
   IG 2" 16 bar 10/16 210 mm 11,00 kg
140404010
   40 16 bar 10/16 200 mm 13,00 kg
140405010
 1) 50 16 bar 10/16 230 mm 16,00 kg
140406510
   65 16 bar 10/16 290 mm 21,00 kg
140408010
 1) 80 16 bar 10/16 310 mm 27,00 kg
140410010
 1) 100 16 bar 10/16 350 mm 35,00 kg
140412510
   125 16 bar 10/16 400 mm 52,00 kg
140415010
 1) 150 16 bar 10/16 480 mm 61,00 kg
140420010
   200 10 bar 10 600 mm 114,00 kg
140420020
   200 16 bar 16 600 mm 114,00 kg
140425010
   250 10 bar 10 730 mm 250,00 kg
140425020
   250 16 bar 16 730 mm 250,00 kg
140430010
   300 10 bar 10 850 mm 359,00 kg
140430020
   300 16 bar 16 850 mm 359,00 kg
Wish List
1)
Also available as angled type, article numbers on request.

PN 25 on request (up to DN 200)
