For nominal widths higher than DN 80, the adjustment tool (Ord. No. 013-10) must be used.
013-09

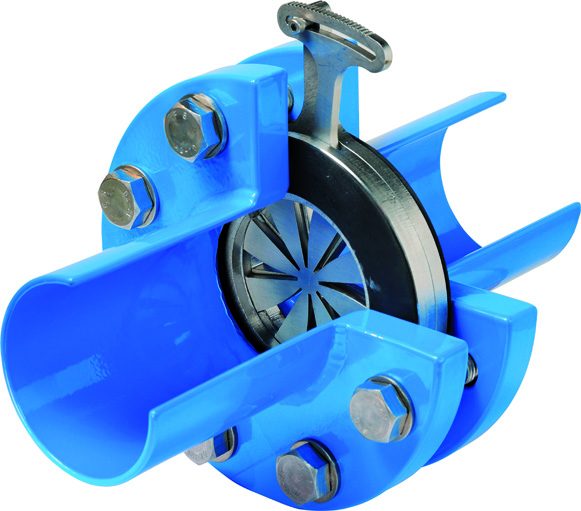

Orifice plate, adjustable
| Material: | Stainless steel |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
The adjustable orifice plate can be used as static throttling element to adjust a constant flow rate or as cavitation prevention (dynamic pressure orifice plate) downstream of control valves. Whenever pressure conditions or flow rates change the opening surface can be increased and/or reduced with the valve in installed condition by turning the slide gate plate. When the opening surface is increased, pressure drop via the orifice plate is reduced. Vice versa, on reducing the opening surface the pressure drop is increased.
The orifice plate shall be installed between two fixed flanges with one gasket on each side. Make sure to observe the installation direction (indicated by an arrow on the orifice plate). Before installation, the orifice plate should be opened completely.
Note:
Max. admissible differential pressure: 5 bar
Please note:
The orifice plate cannot be used as a shut-off device since it doesn't close fully!
|
Order Nr.
|
DN |
PN |
B |
D |
H |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
130000051
|
40 | 10/16 | 18 mm | 90 mm | 103 mm | 0,87 kg | |||
|
130000052
|
50 | 10/16 | 18 mm | 105 mm | 110 mm | 1,15 kg | |||
|
130000053
|
65 | 10/16 | 18 mm | 125 mm | 120 mm | 1,56 kg | |||
|
130000054
|
80 | 10/16 | 18 mm | 140 mm | 128 mm | 1,89 kg | |||
|
130000055
|
100 | 10/16 | 18 mm | 160 mm | 138 mm | 2,34 kg | |||
|
130000056
|
125 | 10/16 | 23 mm | 190 mm | 153 mm | 3,76 kg | |||
|
130000057
|
150 | 10/16 | 23 mm | 210 mm | 178 mm | 4,29 kg | |||
|
130000058
|
200 | 10 | 23 mm | 265 mm | 200 mm | 6,20 kg | |||
|
130000059
|
200 | 16 | 23 mm | 265 mm | 200 mm | 0,00 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Orifice plate, adjustable |
|
Article Nr.
|
Product description |
|---|---|
| 013-10 | Adjustment tool for orifice 013-09 |
