013-00

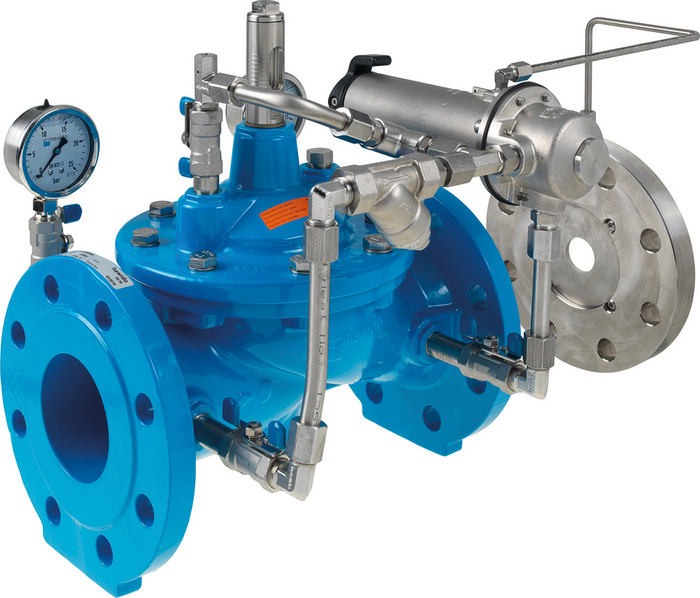

Flow control / limiting valve

Description:
The flow control / limiting valve limits a preset max. flow from a higher pressure zone to a lower pressure zone, independent of varying operating pressures. The nominal flow is infinitely adjustable via the pilot valve up to +/- 15%.

Minimum inlet pressure: 1 bar (Please consider: pressure loss due to main valve and orifice approx. 0.5 bar)

Make sure to allow for flow calming sections between the main valve and the orifice plate (x = 5 x DN) and downstream of the orifice plate (y = 3 x DN)!

For rating, please specify the following:
- Flow rate to be limited
- Inlet pressure (P1 side)
- Outlet pressure (P2 side)

Components:
1: main valve
2: ball valve (A, B, C)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: differential pressure measuring orifice plate
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: manometer with ball valve (A, B)
B: DN 40-150: 22 mm
DN 200-250:27 mm
DN 300: 29 mm
X: 5 x DN pipe
Y: 3 x DN pipe

read more reduce
Material: Body parts, orifice plate, housing: stainless steel, Hawle epoxy powder coated
Control line, orifice plate: stainless steel
Diaphragms, gaskets: EPDM acc. to KTW-BWGL for water
Pilot valve: stainless steel
Max. operating Pressure: See table
Medium Water

Description:
The flow control / limiting valve limits a preset max. flow from a higher pressure zone to a lower pressure zone, independent of varying operating pressures. The nominal flow is infinitely adjustable via the pilot valve up to +/- 15%.

Minimum inlet pressure: 1 bar (Please consider: pressure loss due to main valve and orifice approx. 0.5 bar)

Make sure to allow for flow calming sections between the main valve and the orifice plate (x = 5 x DN) and downstream of the orifice plate (y = 3 x DN)!

For rating, please specify the following:
- Flow rate to be limited
- Inlet pressure (P1 side)
- Outlet pressure (P2 side)

Components:
1: main valve
2: ball valve (A, B, C)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: differential pressure measuring orifice plate
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: manometer with ball valve (A, B)
B: DN 40-150: 22 mm
DN 200-250:27 mm
DN 300: 29 mm
X: 5 x DN pipe
Y: 3 x DN pipe

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
L
Medium Weight Specification Basket
130004005
   IG 1 1/2" 16 bar 10/16 210 mm 11,00 kg
130004006
   IG 2" 16 bar 10/16 210 mm 11,00 kg
130004010
   40 16 bar 10/16 200 mm 15,50 kg
130005010
 1) 50 16 bar 10/16 230 mm 16,00 kg
130006510
   65 16 bar 10/16 290 mm 21,00 kg
130008010
 1) 80 16 bar 10/16 310 mm 27,00 kg
130010010
 1) 100 16 bar 10/16 350 mm 35,00 kg
130012510
   125 16 bar 10/16 400 mm 52,00 kg
130015010
 1) 150 16 bar 10/16 480 mm 61,00 kg
130020010
   200 10 bar 10 600 mm 115,00 kg
130020020
   200 16 bar 16 600 mm 115,00 kg
130025010
   250 10 bar 10 730 mm 247,00 kg
130025020
   250 16 bar 16 730 mm 247,00 kg
130030010
   300 10 bar 10 850 mm 358,00 kg
130030020
   300 16 bar 16 850 mm 358,00 kg
Wish List
1)
Also available as angled type, product numbers on request.

PN 25 on request (up to DN 200)
