Analog position indicator
| Material: |
Body parts: stainless steel Gaskets: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 25 bar |
| Medium | Water |

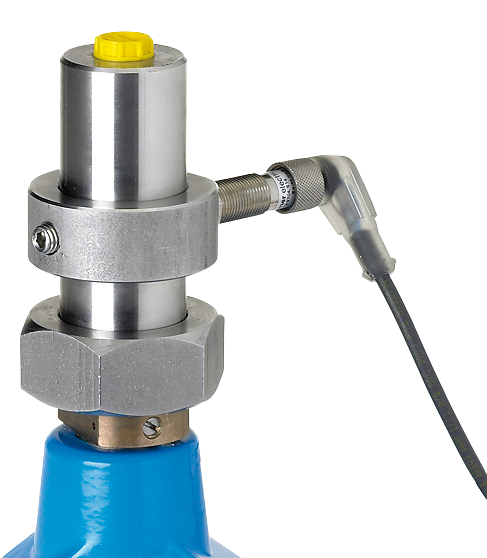

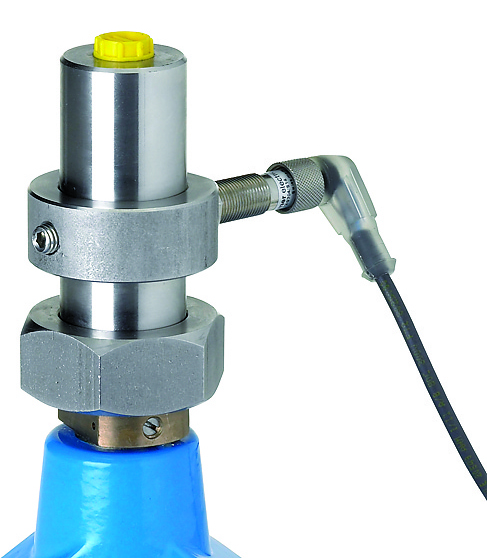

The analog position indicator is mounted on the central outlet of the valve cap. The indicator spindle of the position indicator has to be connected to the spindle of the main valve. The electrical connection has to be established.
After installation the position of the main valve can be retrieved continuously (0% - 100%) via an analog signal
.
Output signal:
- 4-20 mA (standard)
- 0-10 V (on request)
Combination with opening limiter possible (on request).
Position indicators can be retrofit on all Hawle control valves.
|
Order Nr.
|
H |
Suitable for |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
119600050
|
111 mm | DN 1 1/2" - DN 50 | 1,00 kg | |||
|
119600065
|
111 mm | DN 65 | 1,00 kg | |||
|
119600080
|
111 mm | DN 80 | 1,00 kg | |||
|
119600100
|
111 mm | DN 100 | 1,00 kg | |||
|
119600125
|
158 mm | DN 125 | 1,00 kg | |||
|
119600150
|
158 mm | DN 150 | 1,00 kg | |||
|
119600200
|
158 mm | DN 200 | 1,00 kg | |||
|
119600250
|
222 mm | DN 250 | 1,00 kg |
